Camunda BPM Engine Taskpool Collector

Purpose#

Taskpool Collector is deployed as part of a process application (alongside the Camunda BPM engine) and collects information from the engine. It detects the intent of operations executed inside the engine and creates the corresponding Taskpool commands. The commands are enriched with data and sent to other Taskpool components through the command bus.

This description uses the terms event and command. An event is an entity received from the Camunda BPM engine through a delegate or history event listener, then passed to Taskpool Collector through the internal Spring eventing mechanism. Taskpool Collector converts these events into a Taskpool command—an entity that represents an intended change in Taskpool Core. Note that event has a different meaning in CQRS/ES systems and other Taskpool components; in the Taskpool Collector context, an event always originates from Spring eventing.

Features#

  • Collection of process definitions
  • Collection of process instance events
  • Collection of process variable change events
  • Collection of task events and history events
  • Creation of task engine commands
  • Collection of task-assignment information
  • Enrichment of task engine commands with process variables
  • Attachment of correlation information to task engine commands
  • Transmission of commands to Axon command bus
  • Provision of properties for a process application

Architecture#

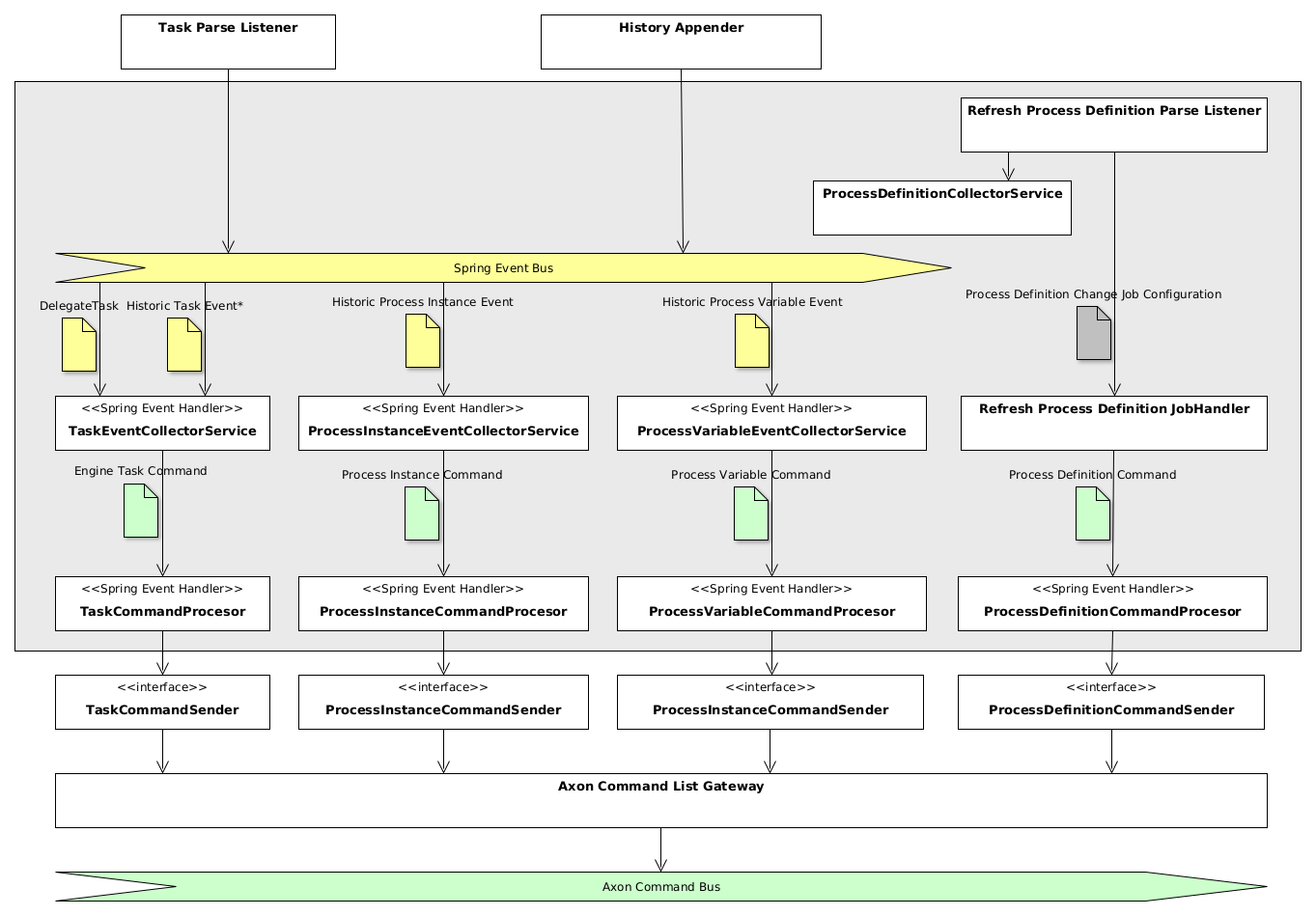

Taskpool collector building blocks

Taskpool Collector consists of several components, divided into the following groups:

  • Event collector services gather information and form commands.
  • Processors manipulate commands, for example by enriching them with payload and data correlations.
  • Command senders are part of the command-sender component. They accumulate commands and send them to Axon Command List Gateway.

Usage and configuration#

To enable the collector component, add the Maven dependency to your process application:

<dependency>
  <groupId>io.holunda.polyflow<groupId>
  <artifactId>polyflow-camunda-bpm-taskpool-collector</artifactId>
  <version>${camunda-taskpool.version}</version>
<dependency>

Then activate Taskpool Collector by adding the annotation to a Spring configuration class:

@Configuration
@Import(CamundaTaskpoolCollectorConfiguration.class)
class MyProcessApplicationConfiguration {

}

Event collection#

By default, Taskpool Collector registers Spring Event Listener to the following events, fired by Camunda Eventing Engine Plugin:

  • DelegateTask events: ** create ** update ** delete ** complete
  • HistoryEvent events: ** HistoricTaskInstanceEvent ** HistoricIdentityLinkLogEvent ** HistoricProcessInstanceEventEntity ** HistoricVariableUpdateEventEntity ** HistoricDetailVariableInstanceUpdateEntity

The events are transformed into corresponding commands and passed to the processor layer. Until Camunda Platform 7.19, eventing is triggered only through custom listeners. Polyflow components do not rely on these; instead, they use their own implementation of built-in, non-skippable listeners. Therefore, disable Camunda Platform custom listeners by setting camunda.bpm.eventing.task to false.

During collection of task information, you can control which listeners are registered. By default, all listeners are considered but you can change this behaviour by setting two properties:

polyflow:
  integration:
    collector:
      camunda:
        task:
          excluded-task-event-names: assignment, delete
          excluded-history-event-names: add-identity-link, delete-identity-link
This setting is useful when you want to disable engine assignment entirely and provide your own task-assignment algorithm or use assignment based on process variables (see below).

Task commands enrichment#

Alongside the attributes received from the Camunda BPM engine, engine task commands can be enriched with additional attributes.

There are three enrichment modes available controlled by the polyflow.integration.collector.camunda.task.enricher.type property:

  • no: No enrichment takes place
  • process-variables: Enrichment of engine task commands with process variables
  • custom: User provides own implementation

Process variable enrichment#

In particular cases, the data enclosed into task attributes is not sufficient for the task list or other user-related components. The information may be available as process variables and must be attached to the task in the task pool. Use Process Variable Task Enricher for this purpose. Activate it by setting polyflow.integration.collector.camunda.task.enricher.type to process-variables; the enricher then put process variables into the task payload.

You can control what variables will be put into task command payload by providing the Process Variables Filter. The ProcessVariablesFilter is a Spring bean holding individual VariableFilter instances. Process-specific filters are combined; filters without a process definition key are global and apply when no process-specific filter exists. If the filter is not provided, a default empty EXCLUDE filter is used, resulting in all process variables being attached to the user task.

Alternatively, enable the property-backed filter. A filter with process-variables is process-level; a filter with task-variables is task-level and therefore requires process-definition-key. Both can be configured together for a process; task-level rules further restrict the process-level rule. See Remote Engine Process-Variable Configuration for the complete property reference and remote-engine examples.

polyflow:
  integration:
    collector:
      camunda:
        task:
          enricher:
            process-variables-filter:
              enabled: true
              filters:
                - process-definition-key: approval
                  filter-type: INCLUDE
                  process-variables: [requestId, applicant]
                  task-variables:
                    approve: [requestId, applicant]

A global process-variable filter can be configured by omitting process-definition-key. It applies to processes without a dedicated filter; a process-specific filter takes precedence. For example, this excludes the technical internalAudit variable from every process that is not configured explicitly:

polyflow:
  integration:
    collector:
      camunda:
        task:
          enricher:
            process-variables-filter:
              enabled: true
              filters:
                - filter-type: EXCLUDE
                  process-variables: [internalAudit]
                - process-definition-key: approval
                  filter-type: INCLUDE
                  process-variables: [requestId, applicant]

A VariableFilter can be of the following type:

  • TaskVariableFilter: ** INCLUDE: task-level include filter, denoting a list of variables to be added for the task defined in the filter. ** EXCLUDE: task-level exclude filter, denoting a list of variables to be ignored for the task defined in the filter. All other variables are included.
  • ProcessVariableFilter with process definition key: ** INCLUDE: process-level include filter, denoting a list of variables to be added for all tasks of the process. ** EXCLUDE: process-level exclude filter, denoting a list of variables to be ignored for all tasks of the process.
  • ProcessVariableFilter without process definition key: ** INCLUDE: global include filter, denoting a list of variables to be added for all tasks of all processes for which no dedicated ProcessVariableFilter is defined. ** EXCLUDE: global exclude filter, denoting a list of variables to be ignored for all tasks of all processes for which no dedicated ProcessVariableFilter is defined.

Here is an example, how the process variable filter can configure the enrichment:

@Configuration
public class MyTaskCollectorConfiguration {

  @Bean
  public ProcessVariablesFilter myProcessVariablesFilter() {

    return new ProcessVariablesFilter(
      // define a variable filter for every process
      new VariableFilter[]{
        // define for every process definition
        // either a TaskVariableFilter or ProcessVariableFilter
        new TaskVariableFilter(
          ProcessApproveRequest.KEY,
          // filter type
          FilterType.INCLUDE,
          ImmutableMap.<String, List<String>>builder()
                      // define a variable filter for every task of the process
                      .put(ProcessApproveRequest.Elements.APPROVE_REQUEST, Lists.newArrayList(
                        ProcessApproveRequest.Variables.REQUEST_ID,
                        ProcessApproveRequest.Variables.ORIGINATOR)
                      )
                      // and again
                      .put(ProcessApproveRequest.Elements.AMEND_REQUEST, Lists.newArrayList(
                        ProcessApproveRequest.Variables.REQUEST_ID,
                        ProcessApproveRequest.Variables.COMMENT,
                        ProcessApproveRequest.Variables.APPLICANT)
                      ).build()
        ),
        // optionally add a global filter for all processes
        // for that no individual filter was created
        new ProcessVariableFilter(FilterType.INCLUDE,
                                  Lists.newArrayList(CommonProcessVariables.CUSTOMER_ID))
      }
    );
  }
}

Note

If you want to implement a custom enrichment, please provide your own implementation of the interface VariablesEnricher (register a Spring Component of the type) and set the property polyflow.integration.collector.camunda.task.enricher.type to custom.

Warning

Avoid using a classic Camunda TaskListener which modifies process variables on task creation, since changes of those listeners can't be used during task enrichment. A proper way to modify instance or task variables is to implement an ordered Spring EventListener listening on DelegateTask, put it before the enricher by providing @Order(TaskEventCollectorService.ORDER - 80) and scope the event listener to the task of your interest using condition: @EventListener(condition = "#delegateTask.taskDefinitionKey.equals('my-task-key') && #delegateTask.eventName.equals('create')")

Data Correlation#

Apart from task payload attached by the enricher, the so-called Correlation with data entries can be configured. Data correlation attaches one or more references (a pair of entry-type and entryId values) to a business data entry and task. In the projection used for task queries, these correlations are resolved and information from business data events can be shown alongside task information.

Configure data-event correlation by providing a ProcessVariablesCorrelator bean. For example:

@Bean
fun process-variablesCorrelator() = ProcessVariablesCorrelator(
    // define correlation for every process
    ProcessVariableCorrelation(
      ProcessApproveRequest.KEY,
      mapOf(
        // define a correlation for every task needed
        ProcessApproveRequest.Elements.APPROVE_REQUEST to mapOf(
          ProcessApproveRequest.Variables.REQUEST_ID to BusinessDataEntry.REQUEST
        )
      ),
      // define a correlation globally (for the whole process)
      mapOf(ProcessApproveRequest.Variables.REQUEST_ID to BusinessDataEntry.REQUEST)
    )
  )

It can also be supplied from Spring properties. Enabling this configuration creates the correlator in place of the empty fallback bean. See Remote Engine Process-Variable Configuration for the complete property reference and remote-engine examples.

polyflow:
  integration:
    collector:
      camunda:
        task:
          enricher:
            process-variables-correlator:
              enabled: true
              correlations:
                - process-definition-key: approval
                  global-correlations:
                    - entry-id-variable-name: requestId
                      entry-type: request
                  correlations:
                    approve:
                      - entry-id-variable-name: customerId
                        entry-type: customer

The process-variable correlator holds a list of process-variable correlations, one for each process definition key. Each ProcessVariableCorrelation configures correlations for all tasks or for an individual task through a correlation map. A correlation map is keyed by a Camunda process-engine variable name and contains the business-data entry type as its value.

Here is an example. Imagine the process instance is storing the id of an approval request in a process variable called varRequestId. The system that stores approval requests fires data-entry events containing the data, with io.my.approvalRequest as the entry type and the request ID as entryId. To create a correlation for task task_approve_request of process_approval_process, configure the correlator as follows:

@Bean
fun processVariablesCorrelator() = ProcessVariablesCorrelator(

    ProcessVariableCorrelation(
      "process_approval_process",
      mapOf(
        "task_approve_request" to mapOf(
          // process variable 'varRequestId' holds the id of a data entry of type 'io.my.approvalRequest'
          "varRequestId" to "io.my.approvalRequest"
        )
      )
    )
  )

If the process instance now contains the approval request id "4711" in the process variable varRequestId and the process reaches task task_approve_request, the following correlation is created (shown here as JSON):

"correlations": [
  { "entry-type": "approvalRequest", "entryId": "4711" }
]

Message codes#

Please note that the logger root hierarchy is io.holunda.polyflow.taskpool.collector

Message Code Severity Logger* Description Meaning
COLLECTOR-001 INFO Task commands will be collected.
COLLECTOR-002 INFO Task commands will not be collected.
COLLECTOR-005 TRACE .process.definition Sending process definition command: $command
COLLECTOR-006 TRACE .process.instance Sending process instance command: $command
COLLECTOR-007 TRACE .process.variable Sending process variable command: $command
COLLECTOR-008 TRACE .task Sending engine task command: $command.
ENRICHER-001 INFO Task commands will be enriched with process variables.
ENRICHER-002 INFO Task commands will not be enriched.
ENRICHER-003 INFO Task commands will be enriched by a custom enricher.
ENRICHER-004 DEBUG .task.enricher Could not enrich variables from running execution ${command.sourceReference.executionId}, since it doesn't exist (anymore).

Task Assignment#

User task assignment is a core functionality for every process application fostering task-oriented work. By default, Taskpool Collector uses information from Camunda User Task and maps that one-to-one to properties of the user task commands. The task attribute assignee, candidate-users, and candidate-groups are mapped to the corresponding attributes automatically.

To control the task-assignment mode, configure Taskpool Collector through application properties. The property polyflow.integration.collector.camunda.task.assigner.type has the following values:

  • no: No additional assignment takes place, the Camunda task attributes are used (default)
  • process-variables: Use process variables for assignment information, see below
  • custom: Provide your own TaskAssigner implementation as a bean.

If the value is set to process-variables, you can set up a constant mapping defining the process variables carrying the assignment information. The corresponding properties are:

polyflow:
  integration:
    collector:
      camunda:
        task:
          assigner:
            type: process-variables
            assignee: my-assignee-var
            candidate-users: my-candidate-users-var
            candidate-groups: my-candidate-group-var

Task Importer#

Alongside the event-based Task Collector based on Camunda Eventing, a dedicated service can query the Camunda database for existing user tasks and publish the results. To avoid duplicate tasks, collected tasks are filtered. You can choose the supplied eventstore filter or provide a custom filter by implementing EngineTaskCommandFilter as a Spring bean. To use this task-import facility, activate it in the application configuration.

The following property block is used for configuration:

polyflow:
  integration:
    collector:
      camunda:
        task:
          importer:
            enabled: true
            task-filter-type: eventstore

This makes TaskServiceCollectorService available to trigger the import. The eventstore filter is useful when Taskpool Core is deployed alongside Taskpool Collector as part of the process application or process engine.
